Automatic box making machines

The F-Series devices automatically folds the boxes out of the tray and seals the bottom. The tray holds 110 box templates (depending on the thickness of the corrugated cardboard). The bottom of the box is sealed with an adhesive tape and taken to the loading area. Due to the special operating principle, this device ensures the ideal shape of the box, even when forming it from the thinnest type of cardboard.

This compact machine can be integrated into production lines in facilities with little available space.

Available options:

• Control Siemens / Schneider / Omron / Allen-Bradley
• Stainless-steel version

Specification:

• Speed: 900 boxes per hour
• Compressed air consumption: 25 m3/h 700 mm HG
• Capacity: 110 boxes (depending on the cardboard thickness)
• Belt operating speed – 22 m/sec.
• Electric power: 0.25 kW (three phase)
• Operating temperature: 5 – 35 °C
• Environmental protection rating – IP54

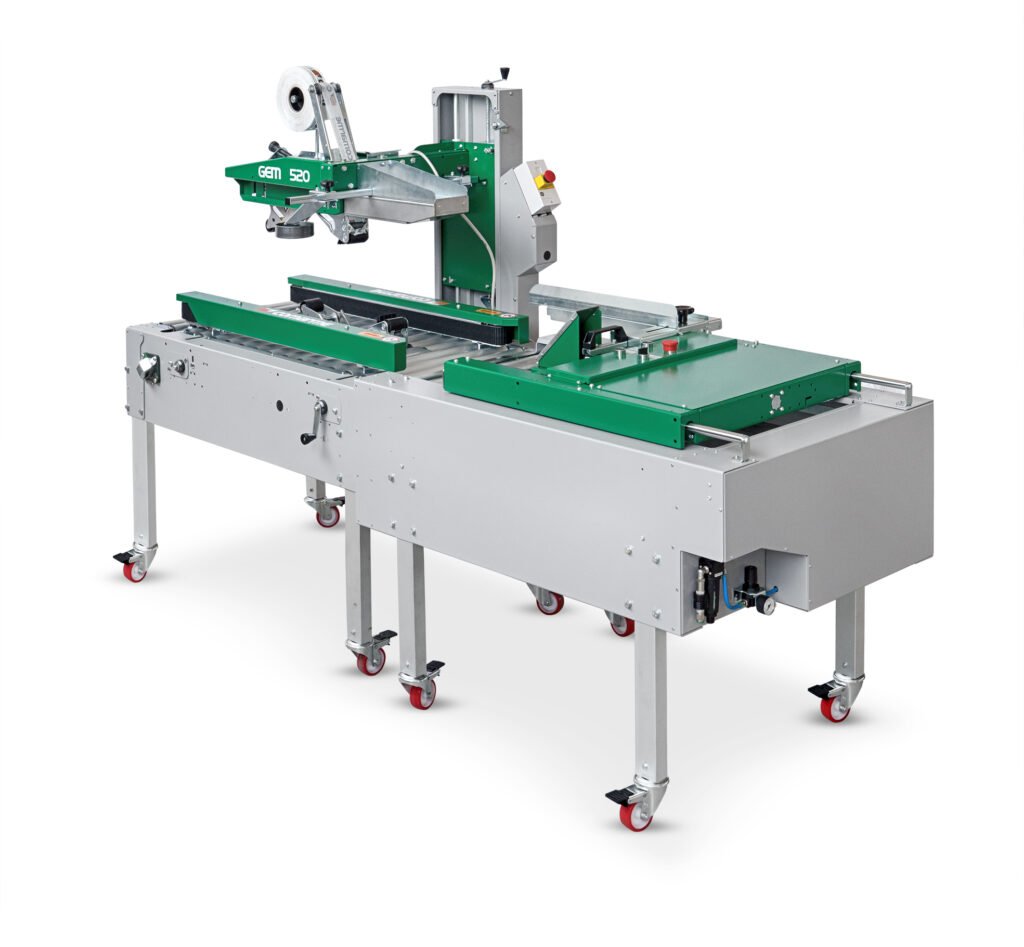

The GEM X series devices automatically fold and seal the top and bottom of different sizes of the American type boxes.

Available options:

1. Control Siemens / Schneider / Omron / Allen-Bradley
2. Stainless-steel version
3. Pneumatic system for three different box formats
4. Compact version (box length up to 400 mm)

Specification:

• Speed: 1,200 boxes per hour
• Belt operating speed – 22 m/sec.
• Electric power: 0.25 kW (three phase)
• Operating temperature: 5 – 35 °C
• Environmental protection rating – IP54

If you would like to purchase this device, contact us by phone +370 5 205 2900 or e-mail us at info@pakmarkas.lt. Our specialists will provide you with all the necessary information, answer any questions you may have and help you to make the right decision.
