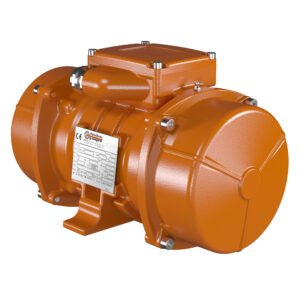

Vibratory motors

We also sell reliable high-quality electric and pneumatic vibratory motors made by the Italian producer Italvibras.

⌂ The most popular vibratory motors are always available in our warehouse.

Specifications:

  • size – 00 to 120;
  • power (centrifugal force) – 4 kg to 30,560 kg;
  • revolutions (number of poles) – 3,000 rpm (2 poles), 1,500 rpm (4 poles), 1,000 rpm (6 poles), 750 rpm (8 poles);
  • electrical power source: 24–690 V;
  • protection class IP66;
  • all motors have II2D-class or higher ATEX protection;
  • materials of the vibratory motor’s housing – aluminium, cast iron, stainless steel;
  • insulation class – F.

We can also offer vibratory equipment for concrete compaction, made by the Italian producer OLI:

  • High-frequency deep immersion vibrators (VH series).
    12,000 vibration cycles per minute.
    Operating range – 45-100 cm.
  • Voltage and frequency converters (CM series) capable of reliably servicing from 1 to 4 deep immersion vibrators and supplying 11-85 A current.
    Available models:
    230 V, 50 Hz configuration, single-phase (three models);
    400 V, 50 Hz configuration, three-phase (four models).
  • Deep vibrators with integrated frequency converters (EWO series) that can be connected to a domestic single-phase 230 V voltage source. 12,000 vibration cycles per minute, operating range 45 to 110 cm.

For more useful information see:

Italvibras product catalogue

Pneumatic vibratory motors (FR)

OLI concrete compaction equipment

Contact us by phone +370 685 680 97  or e-mail us at valerij.soloducha@pakmarkas.lt now and we will advise you and help you choose the most suitable option.
