Vertical packing machines

We sell the following vertical packing machines for packing various bulk, granular and powdered products in bags: Baumann MEDIARIS >Baumann PRIMARIS >Baumann OVALIS >Triapex BV series > Triapex HV series >

These types of equipment are used for packing:

  • frozen foods;
  • fresh products;
  • powdered products;
  • large products;
  • liquid and paste products.

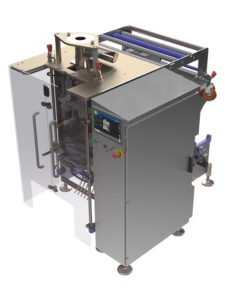

Baumann MEDIARIS packing machines

These packing machines can be individually configured to suit a variety of applications. Depending on the equipment, the output can be up to 220 bags per minute. The devices can be configured as vertical sleeve bag forming machines or as stick pack machines.

Due to the modular design, individual control and drive solutions can be adapted to your needs:

  • vacuum-band operation in uninterrupted mode;
  • vacuum-band operation in intermittent mode;
  • intermittent operation of the cutters;
  • DUPLEX version;
  • TWIN version;
  • MULTILANE version.

A powerful sealing system, optimal heat distribution and a system of precise temperature sensors ensure that temperature-sensitive packaging materials are sealed properly and tightly.

The following sealing systems are available:

  • thermal sealing system (composite films);
  • continuous heat sealer (PE films and composite films);
  • impulse sealer (PE film);
  • ultrasonic sealing system (composite and single-component films, Tyvek);
  • Watttron sealing system.

With MEDIARIS vertical packing machines you retain the possibility to configure them in various ways, and they are particularly suitable for adaptation to future packing trends. The consistent modular design ensures that upgrades and modifications can be made quickly and inexpensively. You can always present your products in updated packaging or increase their packing performance.

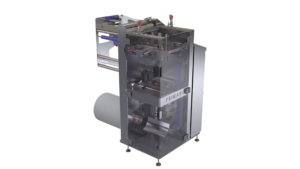

Baumann PRIMARIS packing machines

PRIMARIS equipment for vertical product packaging, offers complete flexibility when working with the most common bag shapes. Classic sleeve bags, stick packs or sachets can be made in 1 to 4 bands in an extremely small area.

The optimised sequence of movement of the sealing devices ensures a long sealing time even when working at high capacity. Computer-controlled formers ensure a stable and safe flow of the film.

The following sealing systems are available:

  • thermal sealing system (composite films);
  • continuous heat sealer (PE films and composite films);
  • impulse sealer (PE film);
  • ultrasonic sealing system (composite and single-component films, Tyvek);
  • Wattron.

These vertical packing machines can be individually configured to suit a variety of applications. Depending on the equipment, output can reach up to 60 bags per minute (with the use of one band).

The modular design allows a choice of the control and drive solutions according to your needs:

  • band operation in intermittent mode;
  • cutter operation in intermittent mode;
  • DUPLEX version;
  • TWIN version;
  • MULTILANE version.

Thanks to the format kits with integrated sealing devices, it is possible to quickly switch to bags of various shapes and not waste any time on restarting the system.

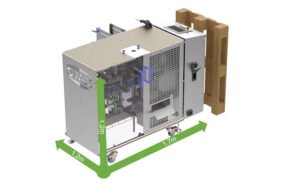

Baumann OVALIS packing machines

OVALIS packaging machines sold under the Baumann brand have been developed with the application of more than 40 years of experience.

Advantages of the Baumann OVALIS equipment:

  • wide range of bag shapes;
  • compact machine size;
  • quick and easy cleaning;
  • possibility to make bags from recycled materials;
  • solid stainless steel housing;
  • quick replacement and adjustment of modules;
  • language selection function menu;
  • if necessary, the machine can be moved on castors.

Available bag formats (all dimensions are specified for empty, flat bags):

  • bag width (external dimensions): 80-210 mm;
  • bag length (external dimensions): up to 300 mm;
  • bottom fold (open): up to 80 mm.

The following bag sealing systems are available:

  • thermal sealing system (composite films);
  • ultrasonic sealing system (composite and single-component films, Tyvek);
  • Watttron sealing system.

Configuration:

  • oval conveyor with actuator and 4 or 8 sliding compartments (stations);
  • tool-free replacement of sliders, adapted for work with bags of various shapes;
  • one-sided or two-sided operation (depending on the format);
  • creates up to 30-40 cycles/min (regardless of removal / filling / sealing time);
  • bag format adjustment at one touch of HMI button;
  • mechanical fastening of the bags throughout the cycle.

OVALIS packing machine is ideal for small batches of products, both for start-ups and small businesses, as well as for specialised industrial or trade enterprises.


Triapex packing machines – BV series

Triapex vertical packing machines are very compact, capable of packing small products in three- and four-seam bags.

Specification:

  • Maximum speed: 66 pack/min
  • Dimensions:
    • Height: 1140 mm.
    • Width: 860 mm.
    • Length: 1442 mm;
  • Bag dimensions:
    • length: 130 mm.
    • width: 105 mm.

Triapex packing machines – HV series

HV series vertical machines are fast, universal and operate with both bulk and liquid products. Actuators ensure reliable and accurate machine operation.

Specification:

  • Maximum speed: 120 pack/min
  • Dimensions:
    • Height: 1700 mm.
    • Width: 1150 mm.
    • Length: 1700 mm.
  • Dimensions of the maximum shaping tube:
    • Round: Ø40-160 mm.
    • Square: 40×20-160×100 mm.
  • Bag dimensions:
    • length: 400 mm.
    • width: 242 mm.

For more information about vertical packing machines call +370 6 567 1148  or e-mail to marius.martinaitis@pakmarkas.lt. Our specialists will provide you with all the necessary information, answer any questions you may have and help you to make the right decision.
