Semi-automatic box making machines

PackPoint series. The device in this series folds the bottom edges of American-type boxes. The box is formed and ready for filling within just a few seconds. The device also holds the box so the operator can load products with both hands.

Equipment specification:

  • Compressed air consumption: 13 – 16 NL (4 bar or 4 x 105 Pa)
  • Electric power: 0.25 kW (single phase)
  • Operating temperature: 5 – 35 °C
  • Environmental protection rating – IP54
  • Stainless-steel version

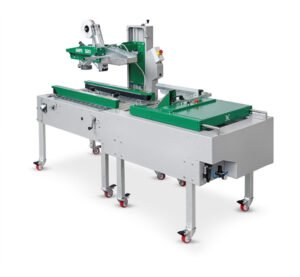

GEM series. Devices of this type can tape the top and bottom of American-type boxes with adhesive tape.

Features the function of automatic adaptation to different box formats, so there is no need to adjust manually.

GEM series models can be combined with PackPoint series box folding devices. They can be integrated into an automated line.

Available options:

  1. Castors that allow you to easily change the location of the device
  2. Transfer and exit conveyors
  3. Guiding lines for folding of top edges of boxes
  4. Pneumatic centering of the box during transfer to the machine
  5. Stainless steel frame

Specification:

  • Speed: 1,000 boxes per hour
  • Belt operating speed – 22 m/sec.
  • Electric power: 0.25 kW (single phase)
  • Operating temperature: 5 – 35 °C
  • Environmental protection rating – IP54

Call +370656 711 48  or e-mail to marius.martinaitis@pakmarkas.lt. Our specialists will provide you with all the necessary information, answer any questions you may have and help you to make the right decision.
