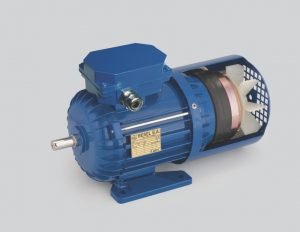

Electric motors with brakes

Gallery

Back

SaveSaved

Save

Ask a question

We offer electric motors with brakes by manufacturers and:

• size range from 56 to 355;
• power from 0.06 kW to 315 kW;
• brake types: very high or high braking torque AC brake, high or low braking torque DC brake;
• standard brake voltage 230/400 V – 50 Hz;
• braking surface: one or two discs;
• rotation speed 3000 rpm (2 poles), 1500 rpm (4 poles), 1000 rpm (6 poles);
• protection rating IP55 or higher;
• aluminium or cast iron housing;
• insulation class F.

–––

For more useful information, see:

• Cantoni with AC brake
• Cantoni with DC brake
• Cantoni operating manual (for sizes from 56 to 80)
• Cantoni operating manual (for sizes from 90 to 180)
• Cantoni operating manual (for sizes from 200 to 315)

Contact us now and we will provide you with more information on these products.
